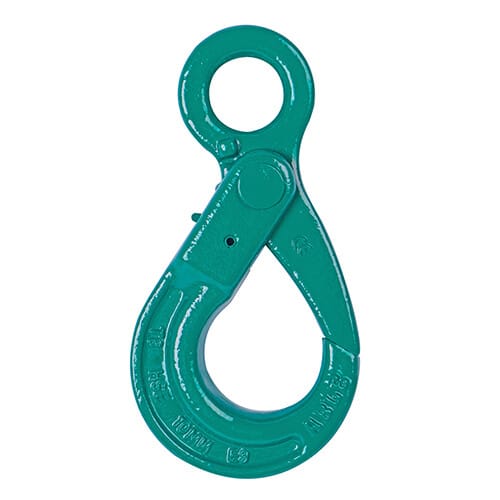

Eye Safety Hook
Eye Safety Hook
Technical Features
- Material is high grade alloy steel (quenched and tempered)
- Used with alloy chain grade 80 for lifting application
- Marked with Brand, WLL, Batch No.and Size
- 100% 2.5 times of capacity proof load tested
- Ultimate load is 4 times of capacity
- Fatigue rated is 1.5 times the WLLat 20,000 cycles
- Lock Latch provides Automatic Locking when Hook is loaded
ALLOY EYE SAFETY HOOK GRADE 80 TYPE: HSE
| Product Code | Size mm | L mm | A mm | B mm | D mm | E mm | F mm | G mm | WLL 4:1 ton | weight kg |
| HSE 006 | 6 | 107 | 28 | 28 | 70 | 22 | 10.5 | 16 | 1.2 | 0.5 |
| HSE 008 | 8 | 132 | 31 | 36 | 88 | 25 | 12 | 20 | 2.0 | 0.8 |
| HSE 010 | 10 | 164 | 48 | 41 | 106 | 32 | 15 | 26 | 3.2 | 1.5 |
| HSE 013 | 13 | 206 | 60 | 52 | 138 | 40.5 | 20 | 32 | 5.4 | 3.2 |
| HSE 016 | 16 | 249 | 73 | 60 | 170 | 55 | 23 | 40 | 8.2 | 6.1 |
| HSE 018 | 18 | 270 | 77 | 79 | 187 | 64 | 27 | 45 | 12.5 | 7.5 |
| HSE 022 | 22 | 310 | 90 | 88 | 204 | 70 | 30 | 52 | 15.0 | 13.4 |
