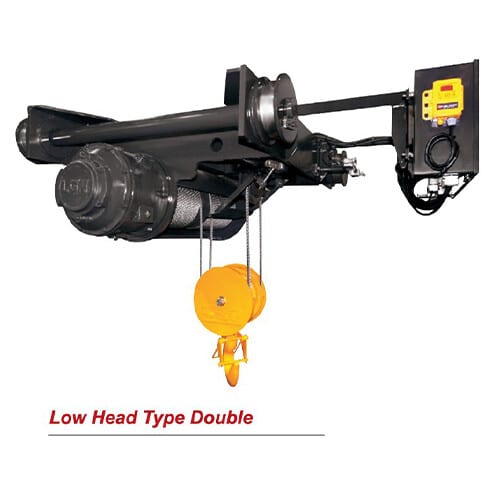

Low-Head Type Hoist With Motor-Driven Trollwy
Low-Head Type Hoist With Motor-Driven Trollwy
| Capacity (ton) | 1 | (1.9)2 | (2.8)3 | 5 | ||||||||||
| Max. lift (m) | 6 | 6 | 6 | 8(12) | ||||||||||
| Hoist | Hoisting speed (m/min) | High speed 50/60(Hz) | 6.7/8.0 | 6.7/7.2 | 6.0/7.2 | 6.7/8.0 | ||||||||
| Low Speed 50/60(Hz) | 4.3/5.2 | 3.7/4.4 | 3.7/4.4 | 4.5/5.3 | ||||||||||
| Hoisting motor (kWXP) | High speed | 1.6X4 | 2.6X4 | 3.8X4 | 7.5X4 | |||||||||
| Low Speed | 1.2X6 | 1.6X6 | 2.4X6 | 5.0X6 | ||||||||||
| Wire rope | Construction | 6XFi(19) | 6XFi(29) | 6XFi(29) | 6XFi(29) | |||||||||
| (Dia.mm) X (no.of ropes) | Ø6.3X4 | Ø8X4 | Ø9X4 | Ø11.2X4 | ||||||||||
| Hoisting Brake | D.C magnet disc brake | A.C magnet disc brake | ||||||||||||
| Traversing | Traversing speed (m/min) | High speed 50/60(Hz) | 15/18 | 15/18 | 15/18 | 15/18 | ||||||||
| Low Speed 50/60(Hz) | 10/12 | 10/12 | 10/12 | 10/12 | ||||||||||
| Traversing motor (kWXP) | High speed | 0.6X4 | 0.6X4 | 0.6X4 | 0.6X4 | |||||||||
| Low Speed | 0.4X6 | 0.4X6 | 0.4X6 | 0.4X6 | ||||||||||
| Traversing Brake | D.C manged disc brake | D.C manged disc brake | ||||||||||||
| Dimension (approx.) (mm) | A | 583 | 656 | 695 | 620(1045) | |||||||||
| B | 426 | 415 | 437 | 655(770) | ||||||||||
| C | 418 | 465 | 478 | 518 | ||||||||||
| D | 343 | 455 | 515 | 542 | ||||||||||
| E | 100 | 105 | 105 | 110 | ||||||||||
| F | 100 | 105 | 105 | 110 | ||||||||||
| N | 405 | 485 | 515 | 650 | ||||||||||
| I-beam and spacing (mm) | a X b X t | S | T | U | S | T | U | S | T | U | S | T | U | |
| 150 X 75 X 7.5 | 19 | 24 | 140 | – | – | – | – | – | – | – | – | – | ||
| 200 X 100 X 7 | 19 | 48 | 140 | 23 | 40 | 167 | – | – | – | – | – | – | ||
| 250 X 125 X 7.5 | 17 | 74 | 142 | 21 | 54 | 169 | 23 | 64 | 169 | – | – | – | ||
| 300 X 150 X 10 | – | – | – | 20 | 90 | 170 | 22 | 90 | 170 | – | – | – | ||
| 450 X 175 X 11 | – | – | – | – | – | – | – | – | – | 27 | 96 | 193 | ||
| Weight (approx.)(kg) | 2.0 | 3.0 | 3.0 | 5.0 | ||||||||||
| Rail (kg/m) | 180 | 285 | 375 | 570(640) | ||||||||||
