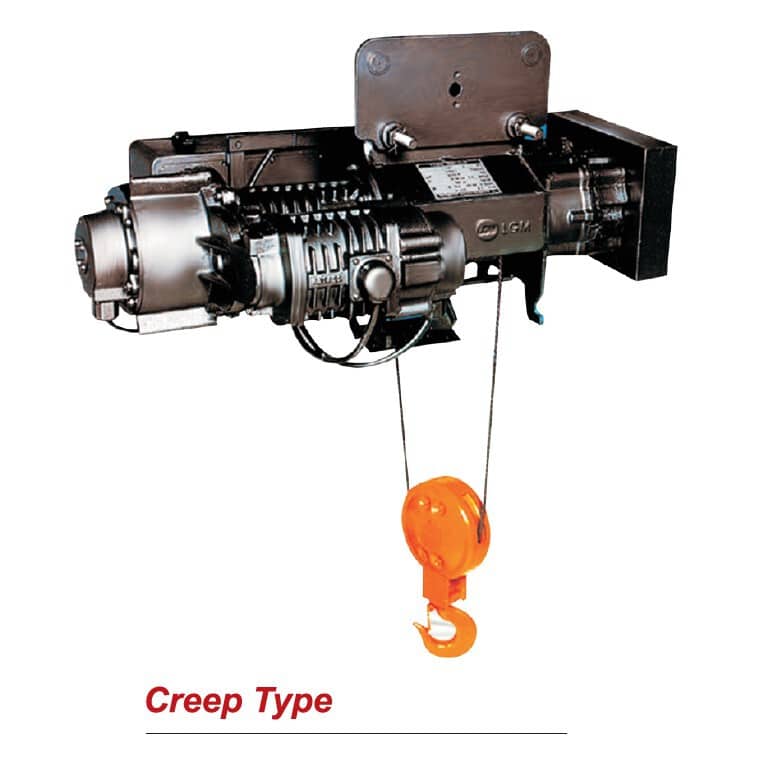

Regular Type Creep Hoist With Motor -Driven Trolley

Regular Type Creep Hoist With Motor -Driven Trolley




Capacity (ton) 7.5 10 15 20
Max. lift (m) 12 12 12 12
Hoist Hoisting/Creep speed
(m/min)
50(Hz) 3.8/0.38 3.7/0.37 3.7/0.37 3.1/0.31
60(Hz) 4.6/0.46 4.5/0.45 4.5/0.45 3.75/0.375
Hoisting/Creep motor (KWXP) 6.7/0.8X6 9/1.6X8/6 15/1.6X8/6 15/1.6X8/6
Wire rope Construction 6XFi(29) 6XFi(29) 6XFi(29) 6XFi(29)
(Dia.mm) X
(no.of ropes)
Ø14X4 Ø16X4 Ø20X4 Ø22.4X4
Hoisting Brake A.C/D.C magnet disc brake
Traversing Traversing speed
(m/min)
High speed
50/60(Hz)
12/15 12/15 12/15 12/15
Low Speed
50/60(Hz)
8/10 8/10 8/10 8/10
Traversing motor (kWXP) High speed 1.0X4 1.0X4 (1.0X4)X2 (1.8X4)X2
Low Speed 0.67X6 0.67X4 (0.67X6)X2 (1.2X6)X2
Traversing Brake D.C manged disc brake
Dimension (approx.) (mm) A 834 897 1000 1045
B 1305 1359 1475 1437
C 314 323
E 300 328 800 800
F 259 296 300 328
G 458 493 558 583
N 1280 1450 1930 2090
I-beam and spacing (mm) a X b X t D S T U D S T U D S T U D S T U
400 X 150 X 10 578 49 58 254 604 49 54 279
450 X 175 X 11 590 49 82 254 616 49 78 279 590 49 82 254 616 49 78 279
600 X 190 X 13 598 50 98 253 624 50 94 278 598 50 98 253 624 50 94 278
Min. radius of curvature (m) 5.0 5.0 Straight Rail Straight Rail
Weight (approx.) (kg) 1010 1530 2450 2800
